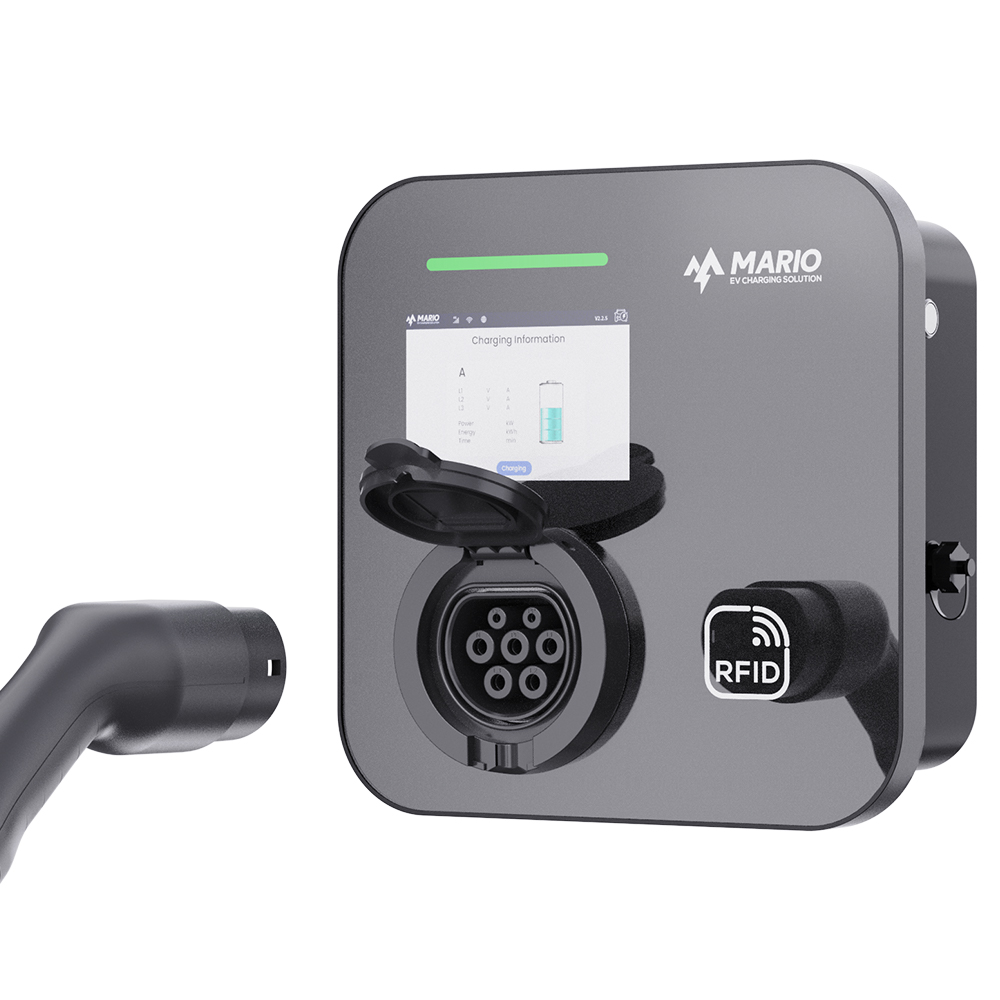

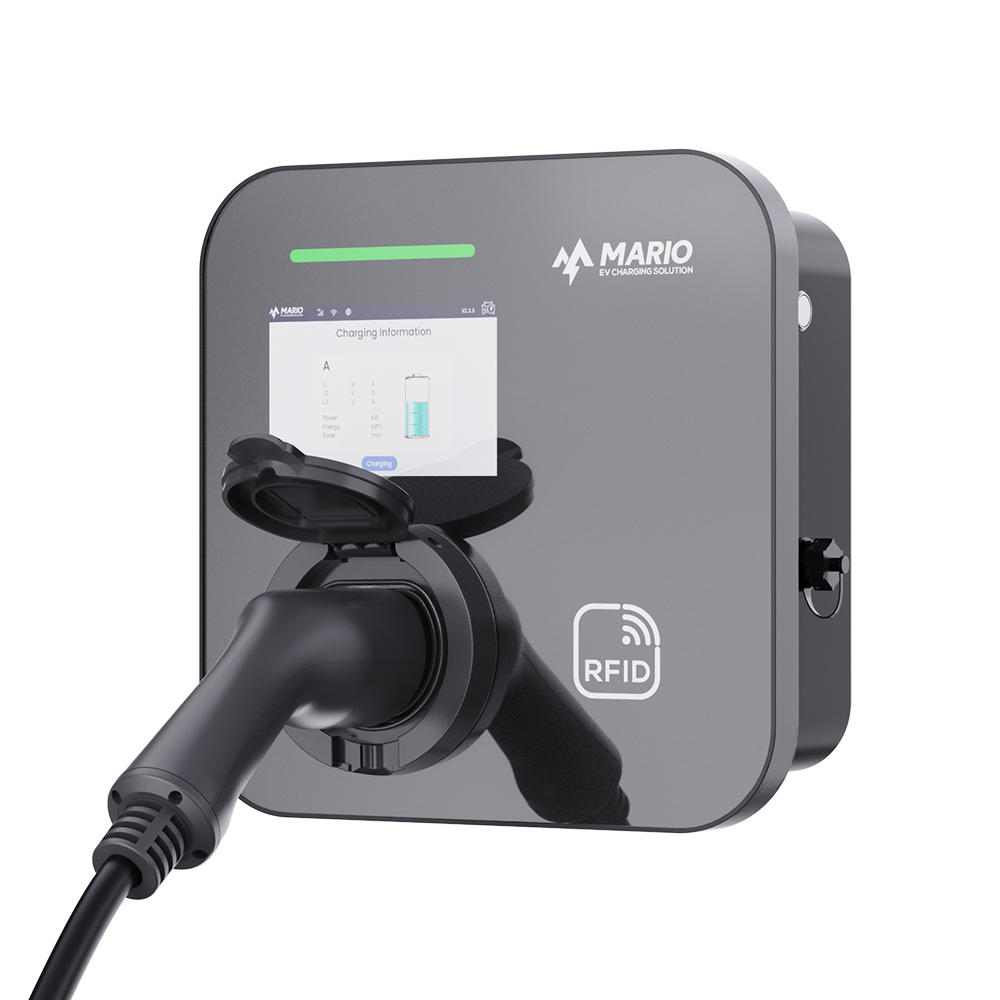

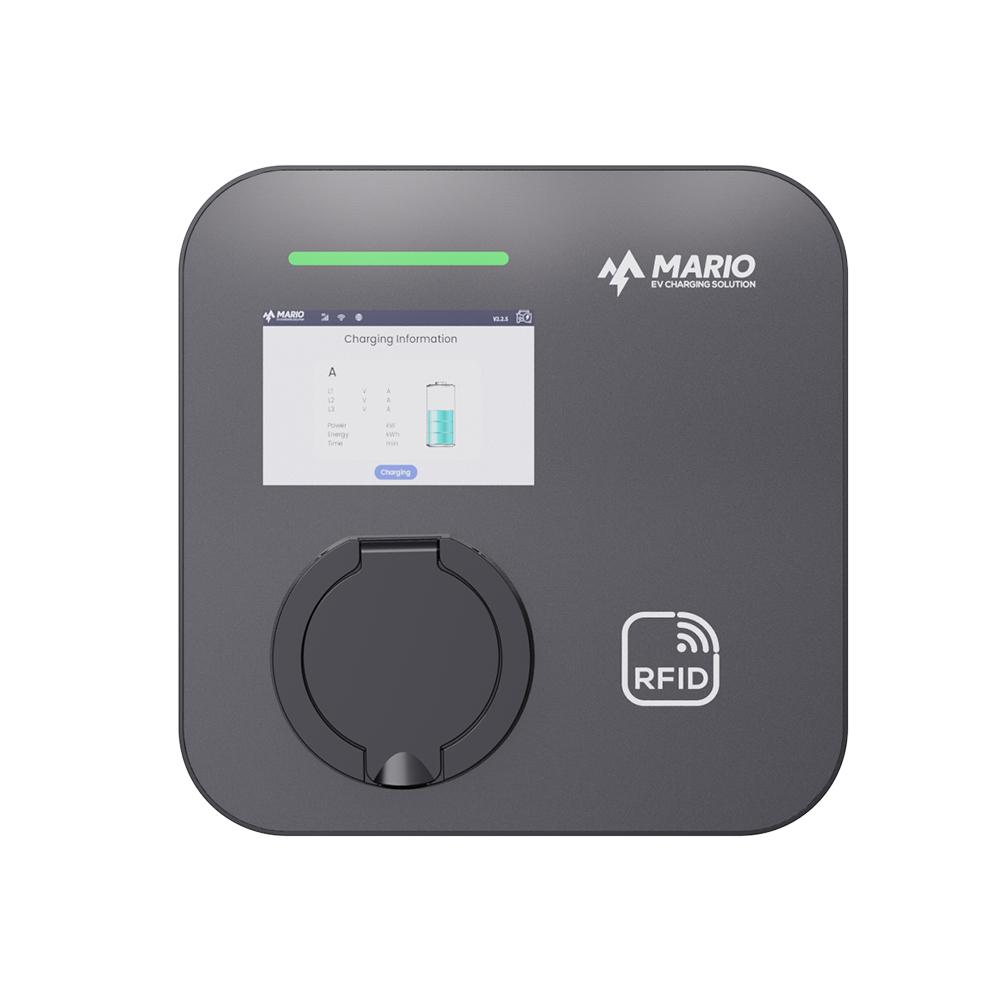

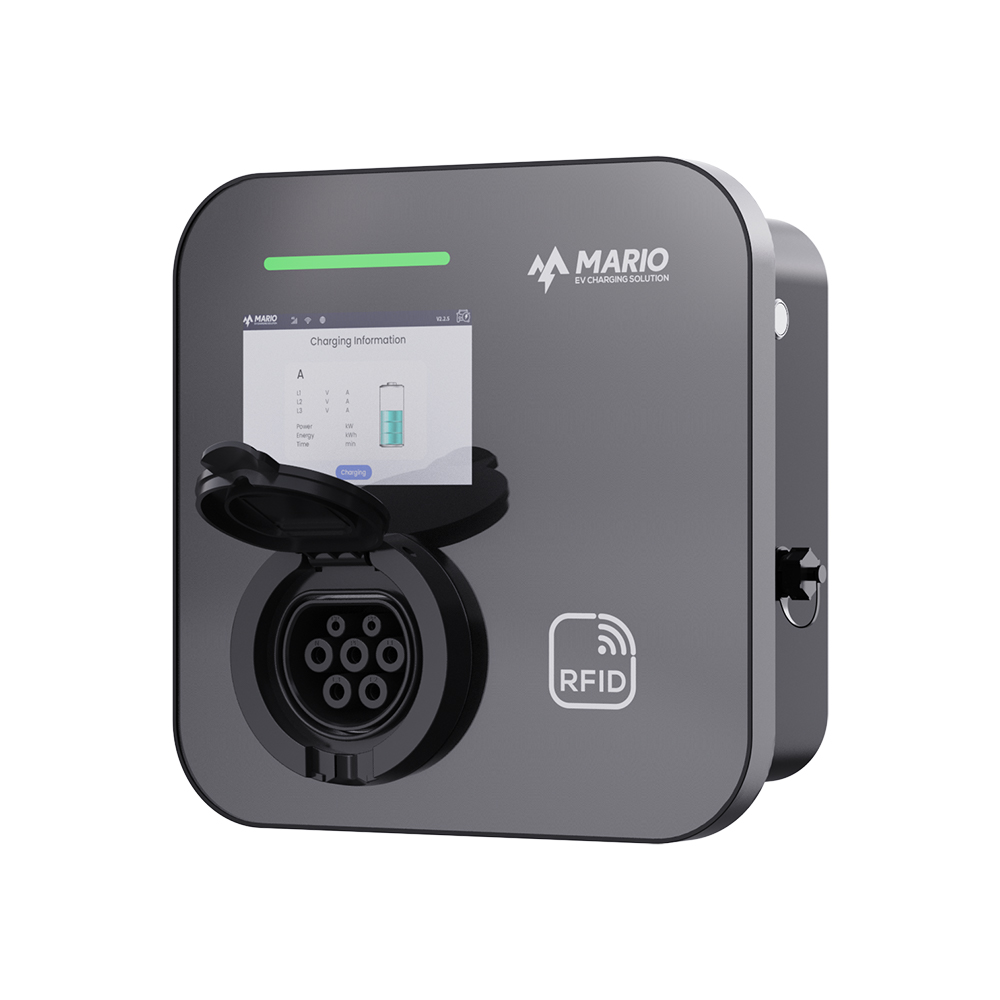

EV charging station Type2 socket for smart home use 22kw ocpp 1.6

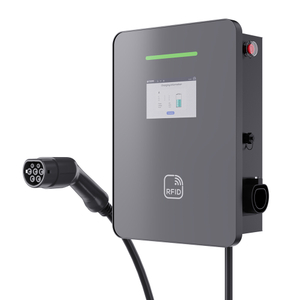

AC EV charger station with double plugs. The standard length of the charging cable is 5 meters (customizable). For indoor or outdoor use. It can also be used with a floor stand and is very easy to install. The material is composed of tempered glass and die-cast aluminum, featuring a simple and beautiful appearance that is highly praised by consumers. WiFi, Bluetooth, and Ethernet (optional). The wall-mounted EV charger is suitable for both home and commercial use. The LED indicator and 4.3-inch touch screen can display the detailed charging status. Built-in Type B, leakage protection, and MID certification electricity meter make the charging safer.
  • 22kw

  • Marioev

Material:
Power:
Plug Type:
IP Degree:
Availability:
Electrical SpecificationWorking Environment
Input Voltage/Output voltage230V /400V (Three Phase)Protection degreeIP65
Input frequency50±2HzEnvironment temperature-30℃ ~ +50℃
Max. output power7.6kW/11kW/22kW(three phase)Relative humidity3-95% non-condensing
Max. output current16A/32AMaximum altitude<2000m
Charging interface typeEN IEC61851,EN IEC62196Standby power consumption<8W
MaterialMetalLED Display5''touch display screen
Start ModePlug&Play/RFID/APPRCDType2A/TypeB,30mA AC+DC mA
CertificationCE TUVInstallationWall-mount/Pole-mount


1. Color LCD display, which can display detailed charging information.

2. Automatically repair non-hardware faults that occur during charging,Faults that need to be manually repaired will be displayed on the LCD screen.

3. Perfect protection mechanism.

4. IP65 protection level, effectively waterproof, acid and alkali resistant, salt spray resistant

5. Self-developed PCBA solution, independent research and development of software and hardware, multi-layer architecture, effectively smaller size, effective heat dissipation, solving internal temperature rise problems and improving stability.

6. Can be wall-mounted or installed on columns to meet more installation scenarios.

7. British PEN ground protection function.

8. Easy installation, safe use, easy maintenance, no damage to the battery.

9. It has successfully connected with many well-known third-party platforms such as MONTA and AMPECO, allowing customers to more quickly deploy the commercial charging market.

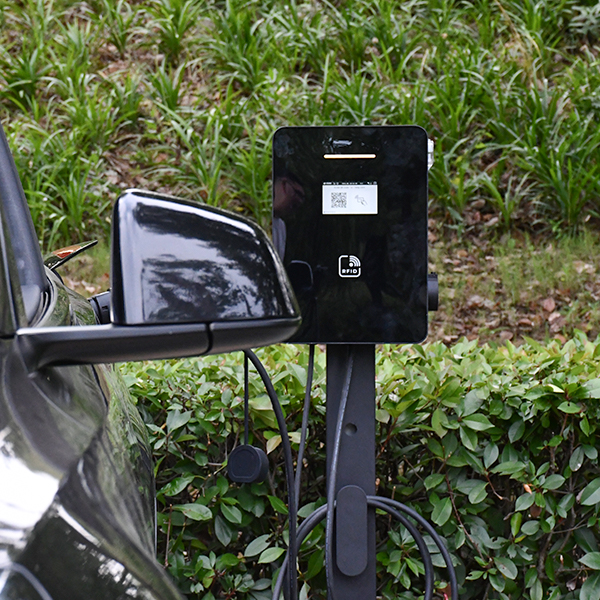

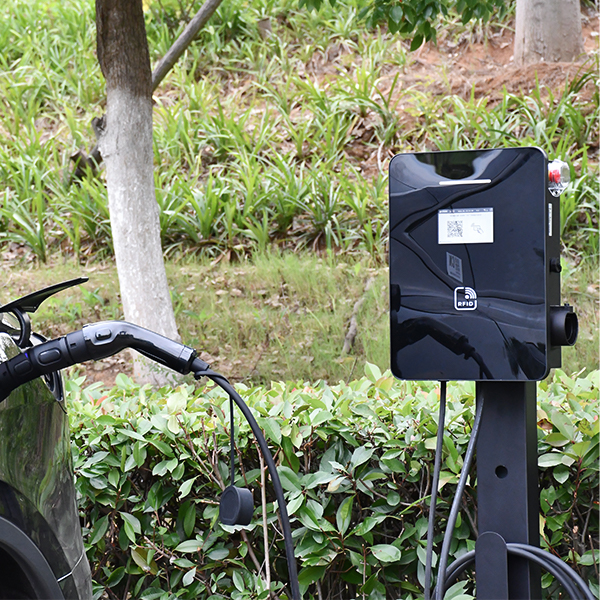

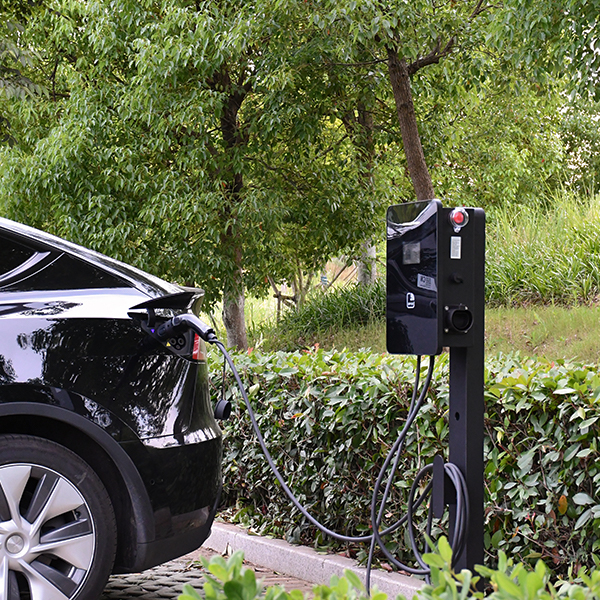

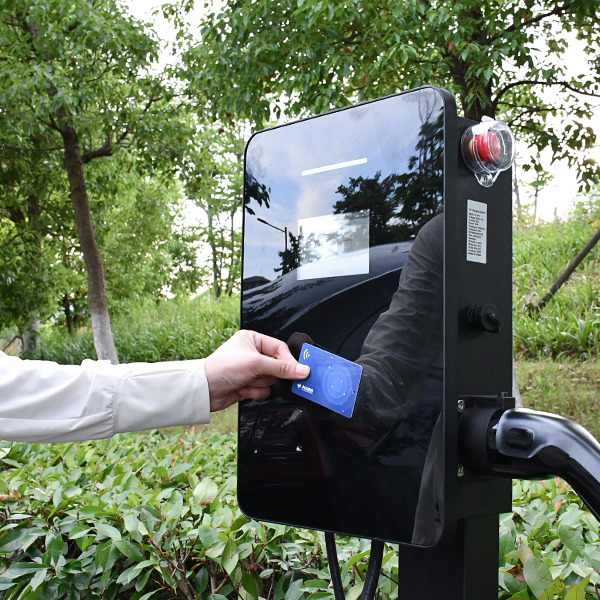

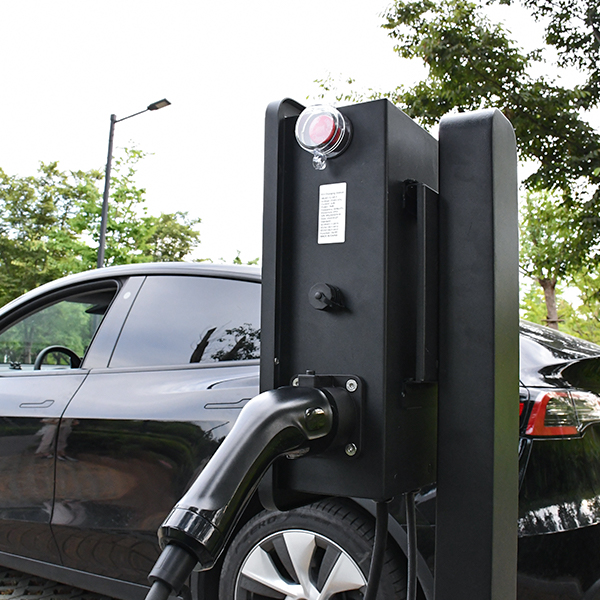

DSC_3549DSC_3555DSC_3564DSC_3568DSC_3569
