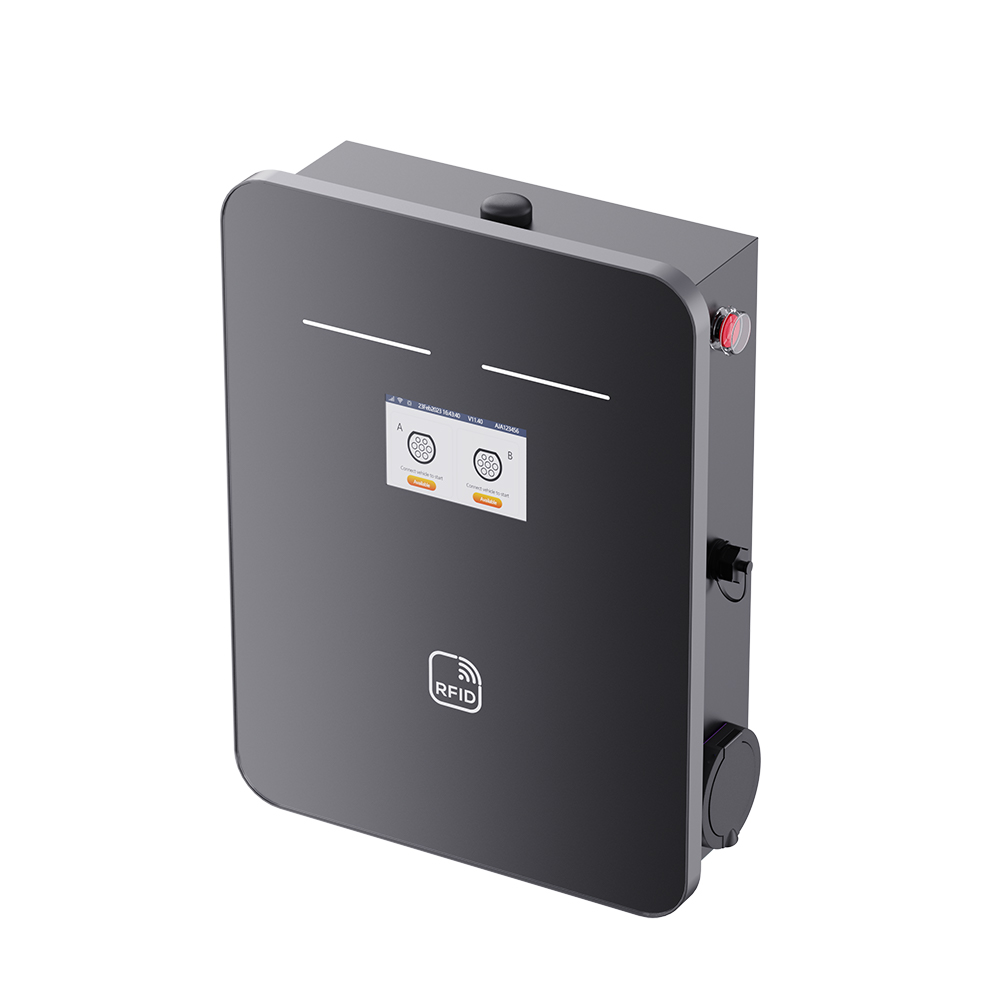

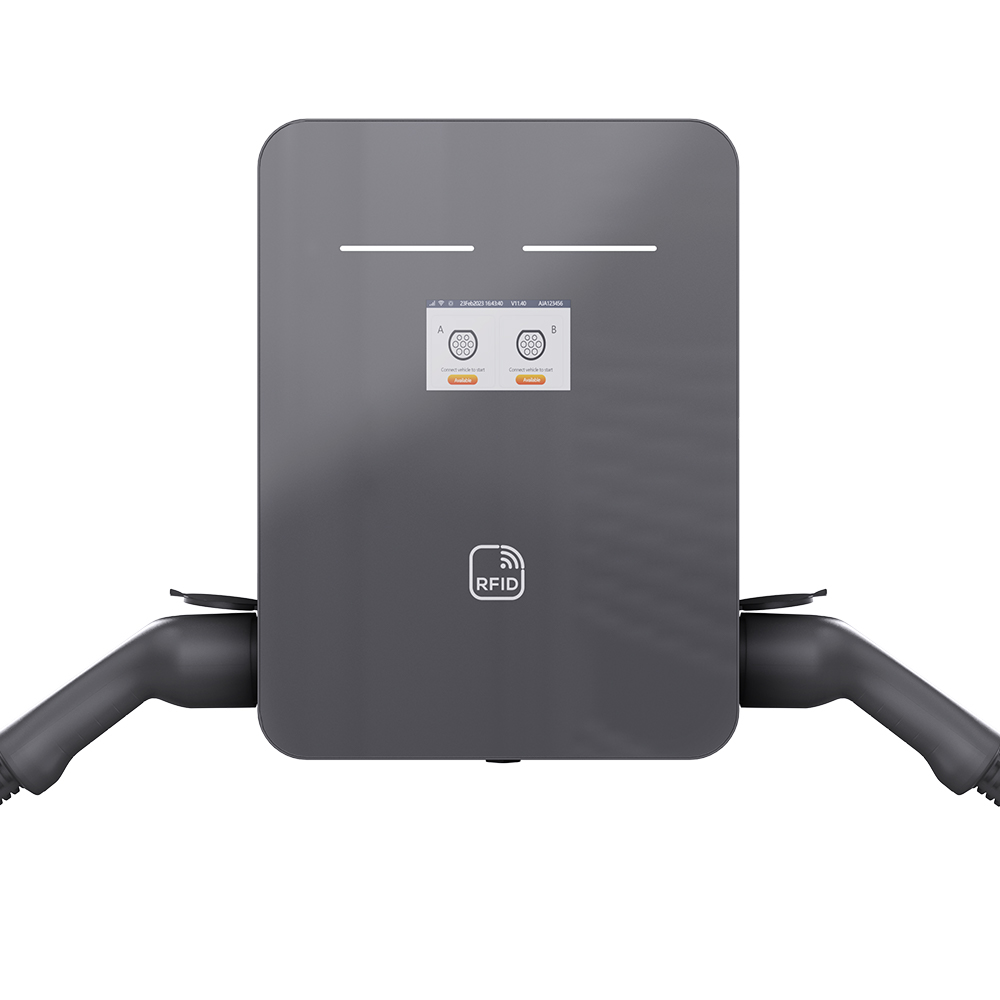

Wallbox EV Charger Type2 socket 2*11KW for home and commercial

AC ev charger station with double plugs,the standard length of charging cable is 5meter(can be customized).WiFi,Bluetooth,Ethernet (for optional)
The Wall-mounted ev charger can be for Home use & Commercial Use. Indoor/Outdoor.It can also used with floor stand,very easy to install. The material consists of tempered glass and Die-cast aluminum, Simple and beautiful appearance that highly praise by consumers. LED indicator+7 inch touch screen can show the detailed charging status.Built-in Type B ,leakage protection, MID certification electricity meter that make the charging more safety.

  • 2*11kw

  • Marioev

Material:
tempered glass and Die-cast aluminum
Power:
2*11KW;
Plug Type:
Type2
Availability:
Inquire Add to Basket

Electrical Specification

Working Environment

Input Voltage/Output voltage230V/400V(Three Phase)Protection degreeIP65
Input frequency50±2HzEnvironment temperature-30℃ ~ +50℃
Max. output power7.6kW/22kW(three phase)Relative humidity0-95% non-condensing
Max. output current32AMaximum altitude

<2000m

Charging interface typeEN IEC 61851,EN 62196
Standby power consumption<8W
MaterialEN IEC61851,EN IEC62196LED Display5''touch display screen
Start ModePlug&Play/RFID/APPRCDType2A/TypeB,30mA AC+DC mA
ertificationCE TUVInstallationWall-mount/Pole-mount


1. 5-inch high-brightness IPS touch screen (7-inch optional), wide viewing angle, with UV protection and three-proof technology Perfectly adapted to outdoor use scenarios, clearly showing charging status.

2. Automatically repair non-hardware faults that occur during charging,Faults that need to be manually repaired will be displayed on the LCD screen.

3. Perfect protection mechanism.

4. IP66 dustproof and waterproof.

5. Dynamic load balancing, peak and valley charging reservation timing function, app intelligent charging control and many other common functions are supported.

6. There are buttons to control the switch.

7. Suitable for home fixed location charging.

8. Easy installation, safe use, easy maintenance, no damage to the battery.

9. OCPP1.6J/OCPP 2.0 full-featured support, independent management backend



双枪-1000+10001双枪-1000+1000未标题-1未标题-2组 4组 2

download MEAC-T2-DS.pdf
