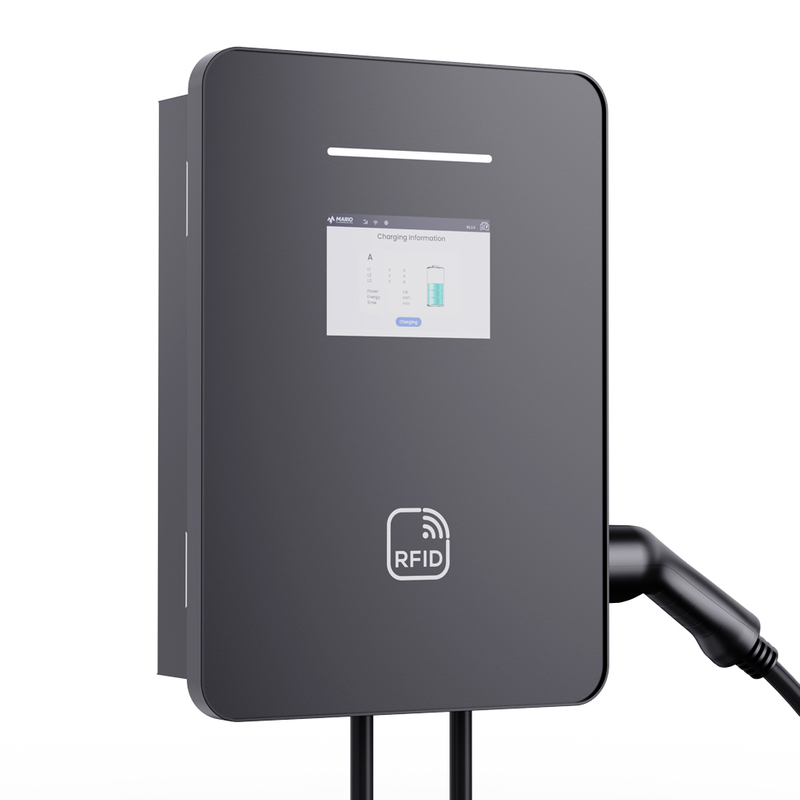

Wallbox electric vehicle charging station Type2 OCPP1.6 7kw/11kw/22kw

AC ev charger station with double plugs,the standard length of charging cable is 5meter(can be customized).WiFi,Bluetooth,Ethernet (for optional)
The Wall-mounted ev charger can be for Home use & Commercial Use. Indoor/Outdoor.It can also used with floor stand,very easy to install. The material consists of tempered glass and Die-cast aluminum, Simple and beautiful appearance that highly praise by consumers. LED indicator+7 inch touch screen can show the detailed charging status.Built-in Type B ,leakage protection, MID certification electricity meter that make the charging more safety.

  • 7kw

  • Marioev

Material:
tempered glass and Die-cast aluminum
Power:
7KW
Plug Type:
Type2
IP Degree:
IP65
Availability:
Inquire Add to Basket

Electrical SpecificationWorking Environment
Input Voltage/Output voltage230V /400V (Three Phase)Protection degreeIP65
Input frequency50±2HzEnvironment temperature-30℃ ~ +50℃
Max. output power7.6kW/11kW/22kW(three phase)Relative humidity3-95% non-condensing
Max. output current16A/32AMaximum altitude<2000m
Charging interface typeEN IEC61851,EN IEC62196Standby power consumption<8W
MaterialMetalLED Display5''touch display screen
Start ModePlug&Play/RFID/APPRCDType2A/TypeB,30mA AC+DC mA
CertificationCE TUVInstallationWall-mount/Pole-mount


1. Color LCD display, which can display detailed charging information.

2. Automatically repair non-hardware faults that occur during charging,Faults that need to be manually repaired will be displayed on the LCD screen.

3. Perfect protection mechanism.

4. IP66 dustproof and waterproof.

5. Two types are used by various families.

6. There are buttons to control the switch.

7. Suitable for home fixed location charging.

8. Easy installation, safe use, easy maintenance, no damage to the battery.

9. Metal shell with high protection level. The color, shape and logo of the shell can be customized.


DSC_3549DSC_3555DSC_3564DSC_3568DSC_3569

download MEAC-T2-SP-7K.pdf
