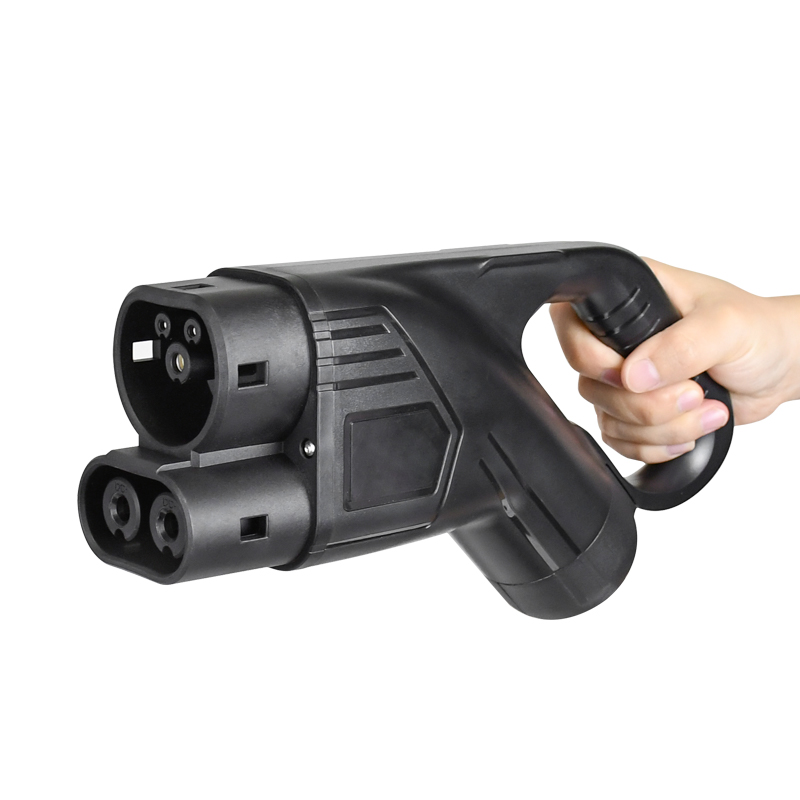

| EV PLUG | TPU CABLE |
| Pin self-cleaning function | Stronger anti-aging |
unique integrated design | Meet the newest EN standard |
| Stronger Plug Temperature Monitor (Patent) | halogen-free more cold resistant and resilient at 40℃ |
| Better electrical conductivity and greater energy efficiency | Support customized cable length |
| Electrical Specification | Working Environment | ||
| Rated current | 80-250A | Protection degree | IP65 |
| Rated voltage | 1000VDC | Environment temperature | -30℃ ~ +50℃ |
| Insulation resistance | >2000M Ω | Relative humidity | 0-95% non-condensing |
| Withstand voltage | 3200V | Maximum altitude | <2000m |
| Contact impedance | 0.5m Ω Max | Standby power consumption | <8W |
| Mechanical life | plug in/out > 20000 times | Cooling | Natural air cooling |
| Shell Material | Thermo Plastic | Fireproof grade of rubber shell | UL94 V-0 |
| Contact Pin | Copper alloy, silver or nickel plating | Cable | TPU/ TPE |
DELIVERY TIME
We can provide samples or test orders within 2-5 working days.
For standard products may be around 7-15 days.
Orders requiring customization can be produced within 20-30 working days.
CUSTOMIZED SERVICE
We provide our customer OEM and ODM projects.
OEM includes color, length, logo, packaging, etc.
ODM includes product appearance design, function setting, new product development, etc.
AFTER SALE SERVICE
Our product have 2 years warranty.
The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory.
