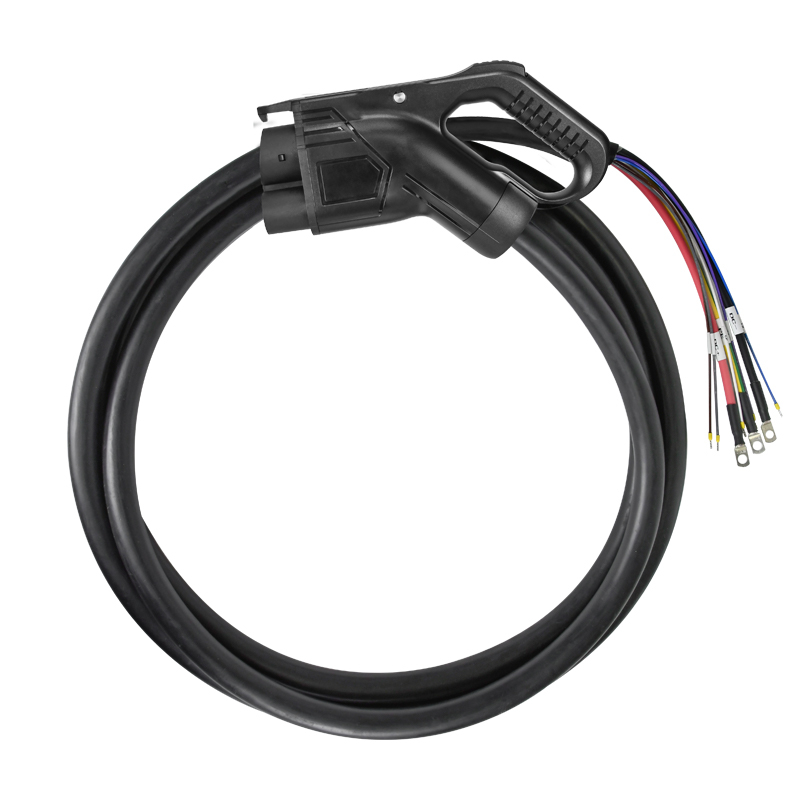

| EV PLUG | TPU CABLE |
| Self-cleaning function on pins | Stronger and anti-aging |
Unique integrated design, stronger | Meet the newest EN standard |
| Temperature monitoring on plugs (patented) | More environmentally friendly, halogen-free |
| Better conductivity and higher energy efficiency | More resistant to cold and keep flexible at -40℃ |
| Electrical Specification | Working Environment | ||
| Rated current | 80/125/150/200A | Protection degree | IP65 |
| Rated voltage | 1000V DC | Environment temperature | -30℃ ~ +50℃ |
| Insulation resistance | >500MΩ | Relative humidity | 0-95% non-condensing |
| Withstand voltage | 3500V | Maximum altitude | <2000m |
| Contact impedance | 0.5m Ω Max | Terminal Temperature Rise | <100N |
| Mechanical life | ＞10000 Mating Cycle | Certification | UL/CE |
DELIVERY TIME
•We have warehouses throughout Europe and North America.
•Samples or test orders can be delivered within 2-5 working days.
•Orders in standard products above 100pcs could be delivered within 7-15 working days.
•Orders that require customization could be produced within 20-30 working days.
CUSTOMIZED SERVICE
•We provide flexible customized services with our abundant experiences in kinds of OEM and ODM projects.
•OEM includes color, length, logo, packaging, etc.
•ODM includes product appearance design, function setting, new product development, etc.
•MOQ is depend on different customized requests.
AFTER SALE SERVICE
•The warranty of all our products is 2 year. The specific after-sale plan will be free for replacement or charging a certain maintenance cost according to the specific situations.
•However, according to the feedback from markets, we seldom have after-sale problems because strict product inspections are carried out before leaving the factory. And all of our products are certificated by top testing institutions such as CE from Europe and CSA from Canada.
